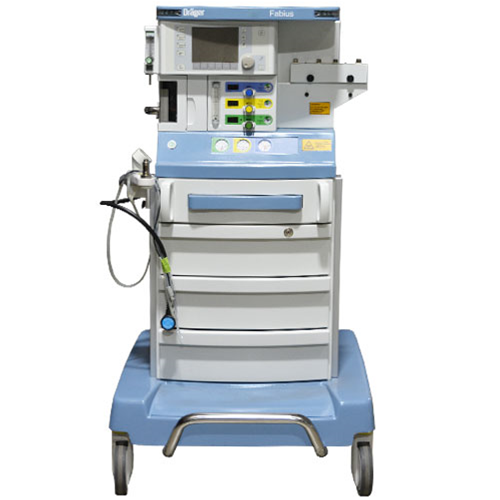

Increase the diagnostic capability of your MRI unit with the help of state-of-the-art ventilation in the Dräger Fabius MRI anaesthesia system specially designed for use in MRI environments.

Fully certified for MRI
Specifically designed for use in magnetic environments, the Dräger Fabius MRI is certified for field strengths of up to 40 mTesla or 400 Gauss. This provides reliable ventilation with 1.5 and even 3 Tesla MRI systems.

Electronic ventilator
The Dräger Fabius MRI incorporates a servo-controlled, piston ventilator that requires no drive gas. The piston is capable of delivering higher inspiratory flows than the traditional bellows ventilator, and provides a more accurate volume delivery.

Broad range of therapy modes
The Fabius MRI gives you access to a broad range of ventilation modes - including volume, pressure, pressure support and SIMV/PS - providing a maximum level of respiratory care regardless of the patient acuity level.

Compact design, intelligent ergonomics
The Fabius MRI has a compact breathing system, COSY 2.6 which can be mounted on the left or right hand side of the unit, depending on the room layout. Mounted on a short, 8” arm to provide positioning flexibility, it simplifies use in an often cramped MRI environment. The Fabius MRI also gives you the option of using the Dräger CLIC disposable soda lime absorber canister for an easy dust-free soda lime canister exchange.

High visibility alarms
The Fabius MRI is equipped with highly visible repeater LED optical alarms that alert caregivers in the central station to changing patient conditions.
Standard operating philosophyBecause it uses Dräger’s uniform user interface, Fabius MRI is quick and easy to learn. All relevant information is displayed on a single, high resolution LCD color screen (6.5 inch diagonal).

Features:
- Screen Display: 6.5" TFT LCD colour
- Vaporizers capability: up to 2
- Device self test: Semi-automatic self test
- LOOPS (p/V-loop and flow/V-loop): No
- Smart Pilot View: No
- Patient gas module: in/ex O2, N2O, CO2, Agent (with Tesla M3)

Technical Data:
- Device versions: Trolley version
- Breathing system: Easy-to-position (mounted left or right on an arm)
- Fresh-gas mixer: mech. mixer with digital read-out (manual needle valves)
- Gases: O2, Air, N2O- RFID Technology: ✗
- Serial interfaces: 2x RS232
